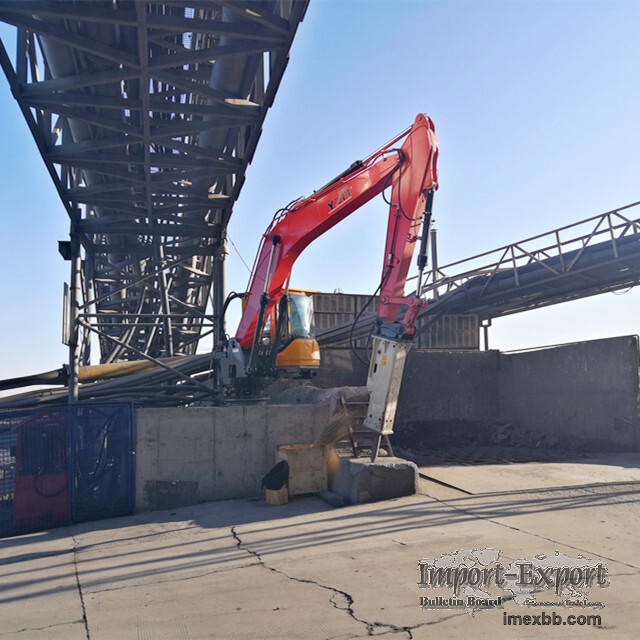

YZH WHC860 Breaker Booms

In today's era where industrial automation is sweeping across the globe,
Breaker Booms have become indispensable core equipment in modern production
lines. YZH's WHC860 Breaker Booms, with their outstanding performance and
innovative design philosophy, are emerging as a key driver for transformation
and upgrading in industries such as mining, metallurgy, and building materials.
YZH Breaker Booms represent high-performance industrial-grade equipment
developed through years of technical accumulation and innovative R&D. Building
upon the technological strengths of YZH's WH series Breaker Booms, this product
integrates the latest electro-hydraulic control technology and intelligent
operating systems, enabling it to meet the demands of high-intensity operations
in various harsh industrial environments.
As a key member of the YZH WHC860 Breaker Booms family, the WHC860 represents
the cutting edge of domestic breaker boom technology. Its design philosophy
centers on three core objectives: enhancing efficiency, ensuring safety, and
reducing energy consumption.
Main parameters of WHC860 Breaker Booms:
Model No. WHC860
Boom weight(without hammer) 8070kg
Max horizontal working radius 11000mm
Max.vertical working radius 8665mm
Min.vertical working radius 3000mm
Max.Height 7035mm
​The Features of WHC860 Breaker Booms:
1. Advanced Electro-Hydraulic Drive System
The WHC860 employs a high-efficiency electro-hydraulic drive system delivering
smooth yet powerful output. Equipped with intelligent power regulation
technology, it automatically adjusts power output based on actual load
conditions, significantly reducing energy consumption while maintaining
operational efficiency.
2. Intelligent Control System
Breaker Booms feature a next-generation intelligent control system supporting
multiple operating modes:
Local Control Mode: Features an ergonomic operator seat and intuitive control
interface
Remote Control Mode: Operable from 10-20 km away, ideal for hazardous
environments
Automated Program Mode: Pre-programmed sequences enable continuous automated
operations
Integrated real-time video monitoring and data acquisition allow operators to
comprehensively track equipment status and task progress.
3. Modular Design and Multi-Functional Attachments
The WHC860's modular design enables rapid attachment changes:
Hydraulic breaker: For crushing hard materials
Hydraulic grapple and lotus claw: For grasping and transporting operations
Specialized bucket: For material clearing and loading
Magnetic separator: For processing ferrous materials
This design achieves “one machine, multiple uses,” significantly enhancing
equipment utilization and return on investment.
The Benefits of WHC860 Breaker Booms:
High Production Efficiency
WHC860 Breaker Booms operate continuously for 24 hours, achieving 5-8 times the
efficiency of traditional manual labor. In mining crushing stations, this
equipment boosts processing capacity by over 30% while significantly reducing
production downtime caused by blockages.
Exceptional Cost Efficiency
The equipment demonstrates substantial economic advantages over extended use:
Energy consumption reduced by over 50%
Maintenance costs reduced by 80% compared to traditional equipment
Labor costs reduced by 70%
Equipment utilization rate increased by over 40%
The investment payback period typically ranges from 12 to 18 months, offering
outstanding economic performance.
Outstanding Safety Performance
Remote control functionality allows operators to stay clear of hazardous work
zones, greatly enhancing workplace safety. The equipment is equipped with
multiple safety protection systems, including overload protection, emergency
stop, and limit switches, ensuring both equipment and personnel safety.
Environmentally Friendly
The all-electric drive design enables the WHC860 to achieve zero emissions,
making it particularly suitable for use in areas with stringent environmental
requirements. Low-noise design also improves the working environment, reducing
impact on operators and the surrounding area.
The Application of WHC860 Breaker Booms:
 Innovative Application in Metal Mining Crushing Stations
A major iron ore enterprise installed WHC860 Breaker Booms at the feed inlet of
its primary crushing station to address ore blockage issues. Previously, manual
blasting was used to clear blockages, requiring 2-3 hours of downtime each time
and posing safety hazards. After adopting the WHC860, blockages can be safely
resolved within 15 minutes, reducing annual downtime by over 300 hours and
boosting production efficiency by 25%, while completely eliminating the risks
associated with manual blasting.
For enterprises considering production line automation retrofits or upgrades,
the WHC860 Breaker Booms represent a worthwhile investment in modern industrial
equipment. They provide robust technical support to enhance competitiveness and
achieve sustainable development.
