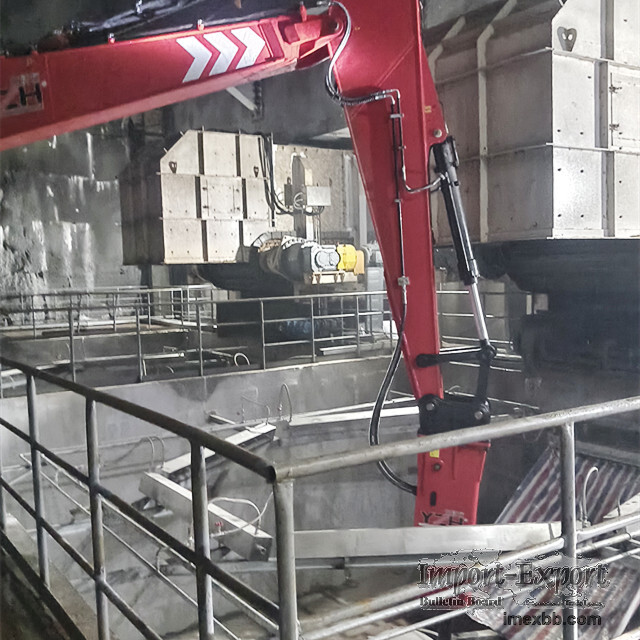

YZH WHD1000 Breaker Booms

The WHD1000 belongs to YZH's WH Series Breaker Booms, primarily designed for
secondary crushing operations in mining and similar scenarios. Below is a
detailed introduction covering its features, advantages, and specific case
studies:
Main parameters of WHD1000 Pedestal Rockbreaker:
Model No. WHD1000
Boom weight(without hammer) 10930KG
Max.Horizontal Working radius 12530mm
Max.vertical working radius 9350mm
Min.vertical working radius 4000mm
Max.Height 8620mm
The Features of WHD1000 Pedestal Rockbreaker:
This robotic arm employs an electro-hydraulic drive system paired with a
dedicated power unit, achieving optimal efficiency between the working arm and
hydraulic hammer. Its boom is constructed from rectangular steel, featuring
large-diameter cylinders and reinforced pins. The slewing motor incorporates a
buffer brake, complemented by a high-performance shock absorption system that
minimizes impact loads during operation. It supports multiple control methods
including cab operation, wireless remote control, and fiber-optic 5G remote
operation. Remote control range extends to 10-20km, with flexible control
enabling precise positioning. Its modular design accommodates various front-end
tools like hydraulic hammers and lotus claws, adapting to different tasks such
as crushing and grabbing.
The Benefits of WHD1000 Pedestal Rockbreaker:
First, energy-efficient and economical—its motor-driven system produces zero
emissions, reducing energy consumption by over 60% compared to traditional
diesel equipment. Operating costs are only one-sixth of fuel expenses for
excavators of equivalent power. Second, high efficiency with low failure rates
—equipped with a premium hydraulic breaker, it boosts crushing output by 20%
while reducing failure rates by 85% compared to conventional diesel units,
ensuring uninterrupted operation. Third, strong adaptability enables long-term
operation in harsh environments like corrosion, explosion-proof zones, and high
altitudes. Customization is available based on client conditions and
environmental factors. Fourth, low maintenance costs stem from optimized
structural design and reliable core components, facilitating easy upkeep while
reducing crusher wear and extending the entire production line's lifespan.
The Application of WHD1000 Pedestal Rockbreaker:
Hongshi Cement Group Customization Case: Hongshi Cement Group has repeatedly
customized this series of fixed mechanical arms for raw material crushing in
cement production. Installed at the crusher feed hopper, the arms specifically
handle large, hard rock blockages, preventing production line shutdowns due to
material jams. This improves workers' operating environment, ensures production
continuity, and significantly boosts overall cement production efficiency.
Large Mining Group Application Case: In mining projects for major state-owned
enterprises like China National Gold Group and Jinchuan Group, the WHD1000 and
its series of robotic arms are deployed at locations such as the feed openings
of underground mine skip hoists and the grid openings of open-pit quarries. By
performing secondary non-explosive crushing of large ore blocks, it resolves
efficiency issues caused by material blockages in mining operations. The remote
control mode eliminates personnel exposure in high-risk zones, significantly
enhancing mining safety.
Metallurgical Industry Application Case: Some metallurgical smelters install
this robotic arm beside metallurgical furnaces to process ladle slag. Its
powerful crushing force rapidly breaks down large slag chunks, while its quiet
hydraulic vibration crushing mode meets environmental requirements in
metallurgical workshops. The modular design enables quick tool switching to
adapt to different slag processing scenarios, ensuring smooth smelting
processes.
