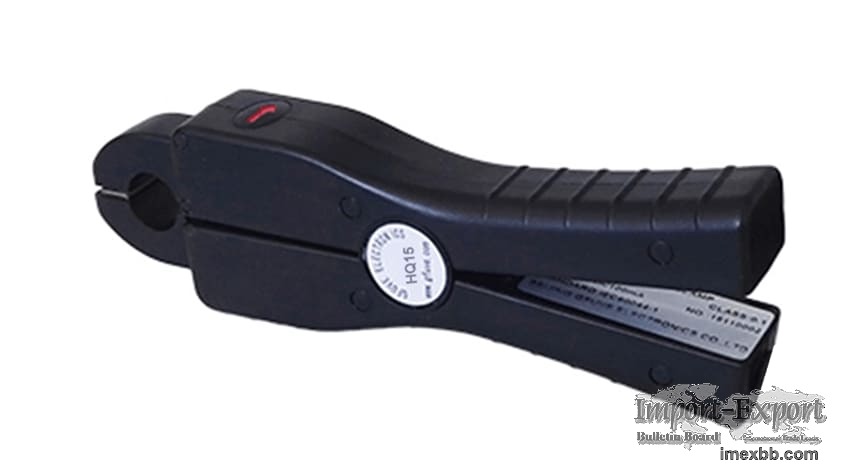

100A AC Current Clamp GFUVE HQ15 15mm Split Core CT Probe sensor

The HQ15 100a current probe sensor is designed for easy installed in tight spaces
and without the need for dismantling the primary busbar or cables. The sensing
head uses sliding push-fit clamp structure, safety isolation to avoid the user to
contact with charged objects directly. It complies with CE standards and meets
300V CAT III safety class. This model HQ15 current sensor is a high accuracy mini
current probe for measurements up to 130A AC. This current probe uses a special
magnetic core to provide higher accuracy and lower phase shift. The HQ15 Series is
an excellent probe sensor to be used in power and low level current measurement
applications.

Electrical parameters
Ratio: 1000: 1 , 2000:1, 2500:1 (customized)
Accuracy class: 0.1%, 0.2%
Primary current: 0 - 5A AC and 0-100A AC
Signal output: 10mV/A, 1mV/A, 1mA/A
Secondary voltage: 0 - 0.05V AC, 0 - 0.1V AC, 0 - 1V AC;
Secondary current: 0-5mA or 0-100mA AC
Max. Cont. Input current: 130A
Load capacity: ≤10Ω, standard 4Ω
Over voltage category: CAT III 600V
Frequency range: 40Hz-5KHz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -40°C to +55°C
Output: 2.5 meter cable with D01 or BNC connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Range: 5A, 10A, 100A optional
Output mode: lead output(2.5m)
Connector: 4mm banana, BNC, signal cable(2 cores),customized

Accuracy (100A Range)
0-100mA: ≤0.5%
100mA-1A: ≤0.2%
1-130A: ≤0.1%

Phase Shift(100A Range)
0-100mA: ≤0.5°
100mA-10A: ≤0.2°
10-130A: ≤0.1°

Mechanical parameters
Dimensions (L x W x H) (mm): 46 x 162 x 25
Weight (g): 320
Holding wire diameter (mm): φ15
Max. jaw opening (mm): 13
Jaw color: Black
Material: PC+ABS, UL94 V0

Minimum Order: 3 sets
