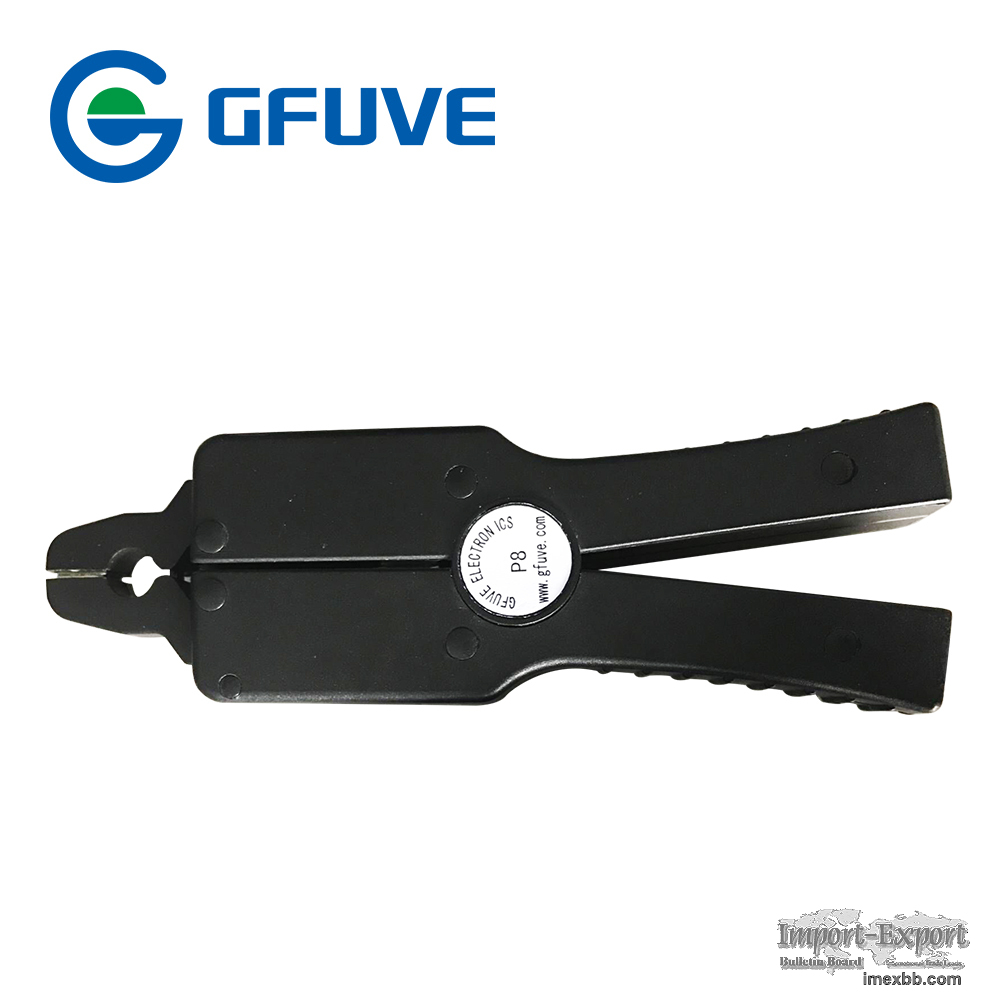

10A AC 2000Hz Handheld Current Clamp GFUVE P8 8mm Hole Split Core Probe

The P8 current clamp ct is an affordable & durable mini current clamp ct for
measurements to 10A AC. This current clamp ct uses a special magnetic core to
provide higher accuracy and lower phase shift. The P8 Series AC current clamp ct
is a cheap and economic current clamp probe to be used in power and low level
current measurement applications.

Electrical parameters
Ratio: 2500: 1, 2000:1 or 1000:1 (customized)
Accuracy class: 0.2%, 0.5%
Phase shift: <10'
Primary current: 0 - 10A AC
Secondary current: 0 - 10mA AC (customized)
Secondary voltage: 0-0.1V AC, 0-0.5V AC, 0-1V AC, 0-5V AC
Max. Cont. Input current: 20A
Load capacity: ≤10Ω, Standard 4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 10mA AC at nominal input current
Output signal (AC voltage): From 0 to 0.5V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 720 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: clamp type
Output mode: lead output(2.5m)
Connector: Audio connector, BNC, 4mm banana, signal cable(2 cores)

Mechanical parameters
Dimensions (L x W x H) (mm): 42× 139 × 20
Weight (g): 180
Holding wire diameter (mm): φ8
Max. jaw opening (mm): 8
Jaw color: Black
Material: PC+ABS+Polycarbonate, UL94 V0

Minimum Order: 3 sets
