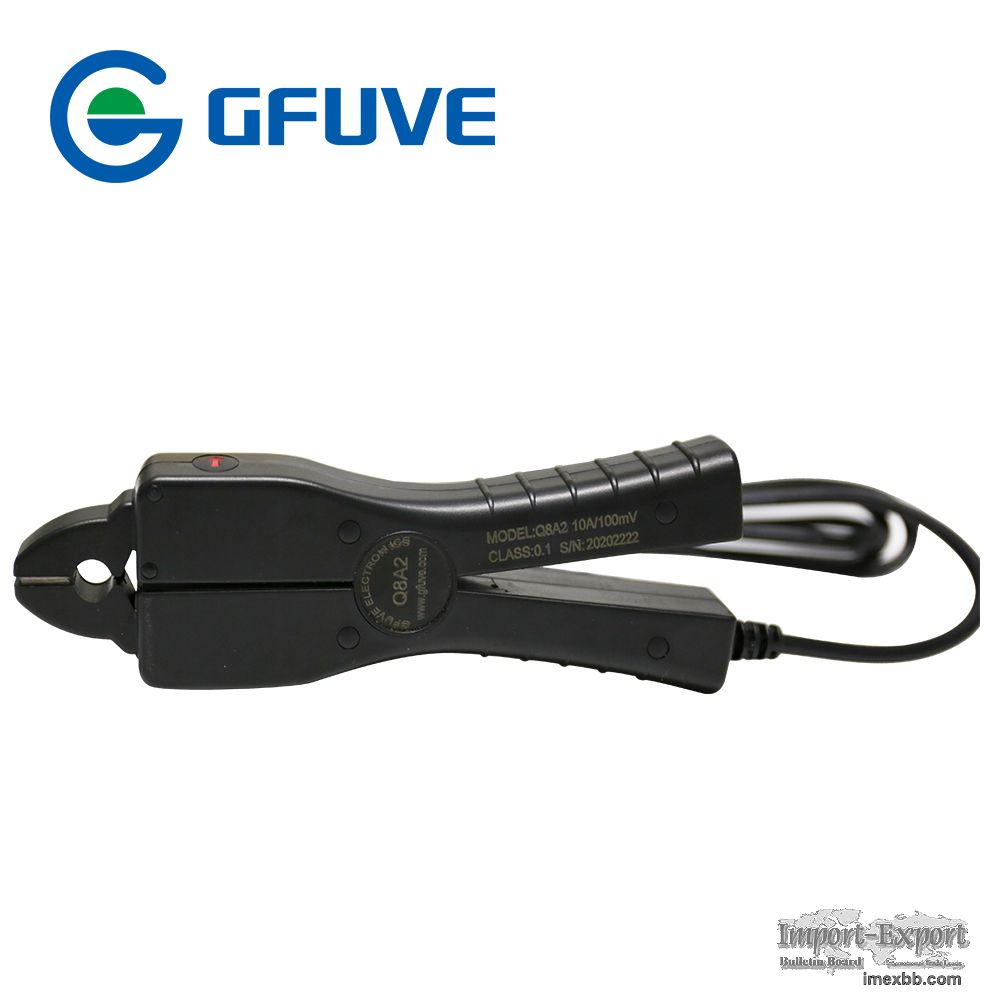

20A AC Current Clamp GFUVE Q8A2 8mm Split Core CT Transformer Probe sensor

The model Q8A2 permalloy core ac current clamp ct with high accuracy up to 0.1%
has been designed for use with energy meter tester, multimeters, recorders, power
analyzers, safety testers etc. It has low phase shift for power measurement,
greatly suitable for electric energy meter calibrator and oscilloscope. This Q8A2
clamp ct can convert 0 - 10A AC current to 0 - 10mA AC current with real shape,
max 20A measurement, but with harmonic measurement function. It is suitable for
leakage current measurement in the field.

Electrical parameters
Ratio: 1000: 1, 2000:1 or 2500:1 (customized)
Accuracy class: 0.1 %,0.2%
Primary current: 0 - 5A AC, 0 - 10A AC, 0 - 20A AC
Secondary current: 0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont. Input current: 6A, 12A, 24A
Load capacity: ≤20Ω , Standard 4Ω
Over voltage category: CAT III 600V
Output signal (AC current): From 0 to 10mA AC at nominal input current
Output signal (AC voltage): From 0 to 100mV AC at nominal input current
Signal ratio: 1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range: 10Hz-200KHz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 720 V
Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation: Clamp type
Output mode: Lead output (2.5m)
Connector: BNC, 4mm banana, Audio plug,customized
Mechanical parameters
Dimensions (L x W x H) (mm): 45x158x25
Weight (g): 250
Holding wire diameter (mm): φ8
Max. jaw opening (mm): 8
Jaw color: Black
Material: PC+ABS+Polycarbonate, UL94 V0

Minimum Order: 3 pieces
