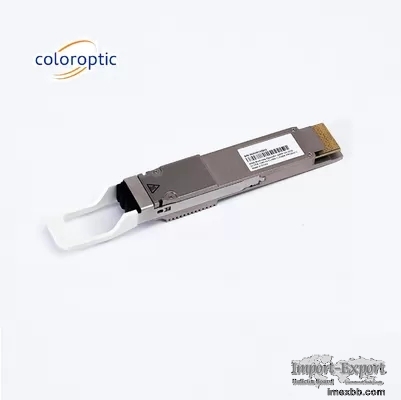

400G OpenZR+ QSFP-DD DCO Coherent Optical Module SCFEC & CMIS 5.0

Product Description
400G OpenZR+ QSFP-DD DCO w/7nm Marvell DSP & Flex Grid, SCFEC & CMIS 5.0



This is 400G QSFP56-DD ZR+ transceiver module is capable of transmission
distances up to 480km and compliant to the OIF 400G ZR standard,and
compliant to the Open ZR+ standard,it using the Silicon Photonics (SiPho)
based optical engine and the latest DSP generation that enables 400G
coherent transmission. The QSFP-DD form factor and CMIS5.1 support makes
them suitable for transmission applications using Ethernet switch equipment.



Key Features
Full C-band 75GHz ITU-T transmitter
Built in client and line OTN processing
Low latency E-FEC Data rate up to 400Gbps
Support Client-side Interfaces: 1*400GAUI-8/4*100GAUI-2
Compliant with QSFP-DD MSA and 400GE
Transmission distance up to 480km
Integrated with EDFA
Duplex LC receptacles
Hot-pluggable electrical interface
Commercial operating case temperature range: 0℃ to 75℃
OpenZR+ Specifications, version 1.0, 4 September 2020
Application
400G Ethernet

Product Details
400G QSFP-DD ZR DCO
Features:
　
7nm Marvell DSP 　
C band:191.3 ~ 196.1THz, Flex Grid
　
Support Line side: 　
DP-16QAM OFEC

　
Support Flexible client-side: 　
400GAUI-8/4*100GAUI-2 　
Compliant to CMIS5.0 Applications: 　
Compliant to OIF Coherent CMIS1.1 •OTN •DCI 　
l Standard QSFP-DD type 2 form factor •Metro 　
l 76pin QSFP-DD MSA connector
l 0~70℃ case temperature 　
l Hot Swappable 　
　
Main Parameters: 　 　 　 　 　 　
Parameter Symbol Min Typical Max Units Note
Operating Case Temperature TOP 0 　 70 degC 　
Operating Input Optical Power of Signal Psig -12 　 0 dBm
　
Transmitter output power range Pout -10 -6
Frequency Range f 191.3 　 196.1 THz 　
Receiver Sensitivity SEN 　 -20 dBm 　
OSNR sensitivity OSNR 　 24 dB/0.1nm 　
Power Consumption 　 　 21 W 　


400G OpenZR+ QSFP-DD DCO Coherent Optical Module SCFEC & CMIS 5.0 0



Innovations

The manufacturing environment is strictly compliant with most advanced
technological standards, ensuring our products a long term reliability.



Quality & Assurance

Our Cutting-Edge test equipment verifies that each of our products meets our
high-quality standards



Customization

Thanks to the specialists of our Engineering Department, we have full
control over both the hardware and the software of all our transceivers.
Need your personal labelling? No problem, just ask and we provide!



Multi-Compatibility

ColorOptic offers a true cost-effective solution for all major platforms
including the original vendor firmware.



Technical Support

Any issues with your equipment? We are already dispatching an engineer to
your premises to fix it. We are 7x24 hours online supports.
