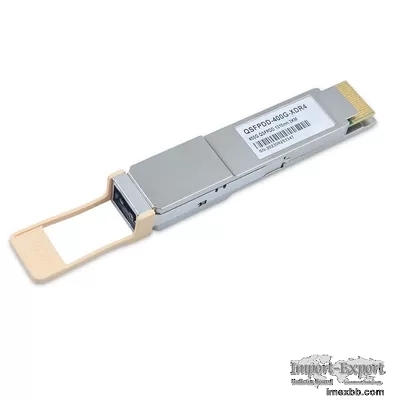

400GBASE XDR4 QSFP-DD 400G Optical Transceiver MTP MPO-12 2km Over SMF Tran

PRODUCT DESCRIPTION
Features


Compliant with IEEE802.3bs Standard: -400GAUI-8 Electrical Interface
Compliant with IEEE 802.3cu Standards: -4x 100GBASE-FR1 Optical Interface
Compliant with QSFP-DD MSA HW Rev 5.1 Type 2 Housing with MPO-12 Connector
Compliant with QSFP-DD CMIS Rev 4.0
Two Wire Serial Interface with Digital Diagnostic Monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1 Laser




Applications


400GBASE-XDR
Infiniband Interconnect
Enterprise Networking




Description



The ZK-QDD-4H31MP-02 Module supports link lengths of up to 2km parallel SMF
with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and
400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four
parallel lanes by one wavelength per lane. It can be used as 4x100G breakout
to QSFP28-DR-100G.
