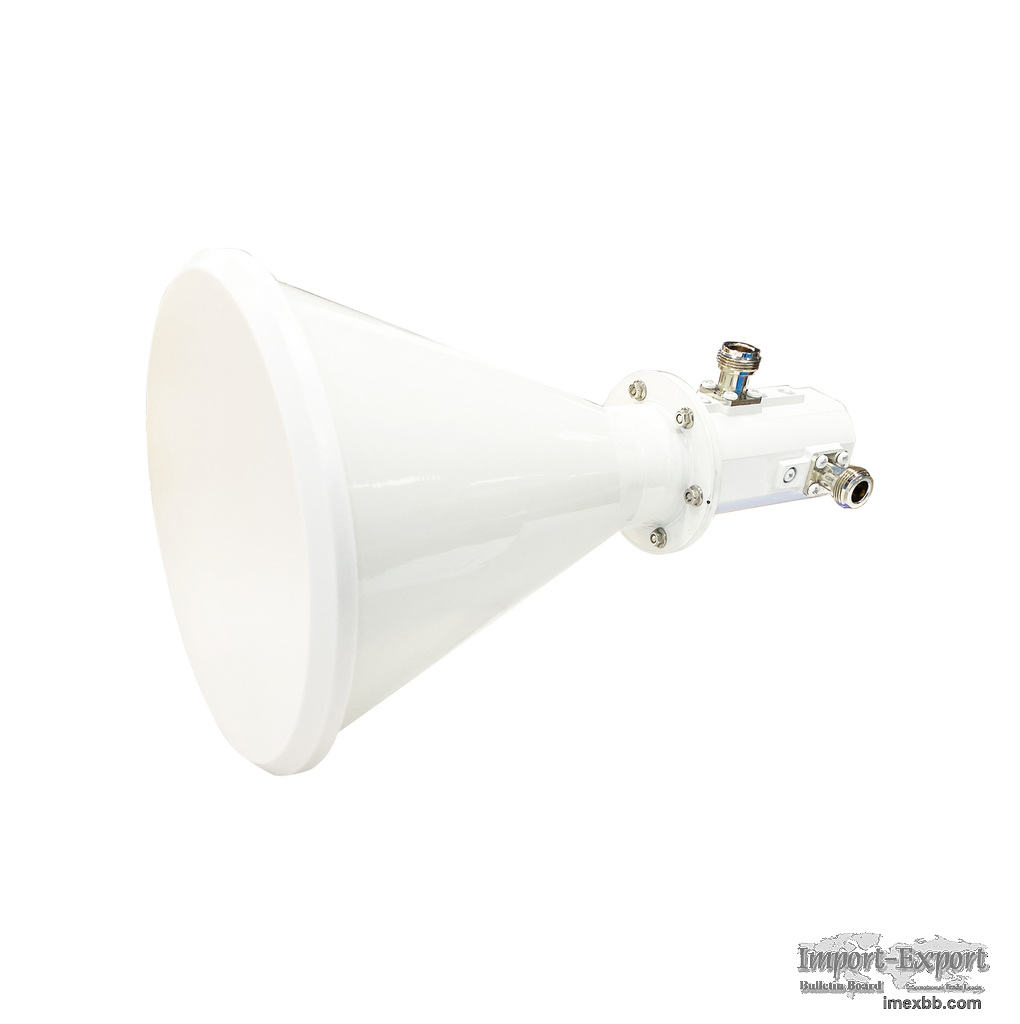

5G 6G Horn Antenna 4900-7125MHz

BBT-4971HO15HV Ultra-Wideband 5G 6G Horn Antenna

Designed to support emerging 5G, 6G, and WiFi 6E/7 network deployments. It is
specifically engineered for Point-to-Point (PTP) and Point-to-Multipoint (PTMP)
transmission coverage, making it an ideal solution for long-distance wireless
broadband systems.

Key Specifications:
- Frequency Range: 4900-5400MHz / 5400-6400MHz / 6400-7125MHz
- Gain: 15.5 dBi / 17 dBi / 18 dBi
- Polarization: Vertical/Horizontal
- VSWR: <= 2.0
- Max Input Power: 100W
- Connector Type: 2 x N-Female
- Dimensions: 150x240 mm
- Antenna Material: Aluminium alloy
- Radome Color: White
- Operating Temperature: -40 to +60 C
- Lightning Protection: DC Grounded

BBT ANTENNAS INC provides professional OEM/ODM manufacturing. Please contact us
for more technical specifications or sample requests.

Minimum Order: 1 pieces
