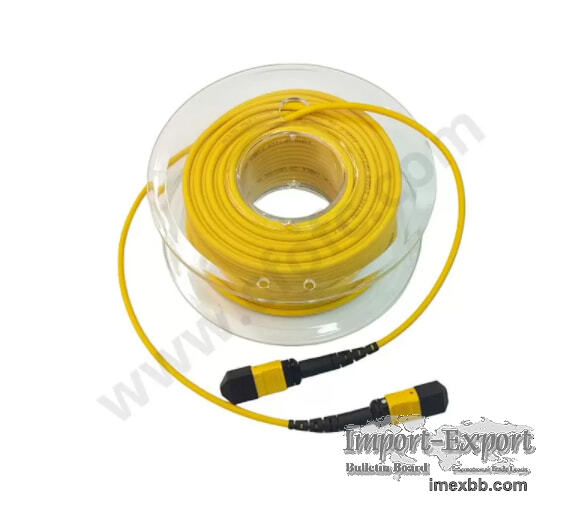

8F OS2 Singlemode MPO MTP Trunk Cable

MTP/MPO Trunk Cable is compact, high-density fiber optic connector assemblies
designed for high-density applications. Our MTP/MPO Trunks are suitable for
applications up to 100G for connecting equipment or interconnecting
modules/panels within a data center. The MTP/MPO connectors come in Standard
and Elite versions to accommodate various power budget requirements of our
customers.

Feature:
USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand
Different MT inserts available (Base-8, Base-12,Base-16, Base-24)
Color-Coded Connector Boots for Easy Identification
Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius
Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
Availa , ble in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and
double sheath (4.5mm to 5.5mm)
RoHS2 Certification
Technical Parameters:
Connector A MTP® Female (Pinless) Connector B MPO Female (Pinless)
Polish Type UPC to UPC Glass Fiber Corning Clear Curve®
Fiber Mode OS2 SMF 9/125μm Wavelength 850/1300nm
Fiber Count 8 Fibers Polarity Type B
Cable Outside Diameter(OD) 3.0mm-17.3mm Cable Jacket Plenum(OFNP)
Min.Bend Radius(Optical Fiber) 7.5mm Min.Bend Radius (Fiber Cable)
20/10D(Dynamic/Static)
Connector Durablity 500 times Tensile Strength(Long/ShortTerm)
80/240N
Insertion Loss 0.35dB Max(0.15dB Typ.) Return Loss ≥20dB
Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -10 to 70℃(14 to 158F) Storage Temperature -40 to
85℃
Glass Fiber Corning, YOFC Operating Temperature -10 to +70°C
Applications:
HPC(High-Performance Computing)
Datacom
DC(Data Center)& Hyperscale DC
LAN and SAN Backbone Network
10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of
Base-12 or Base-24
800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16
