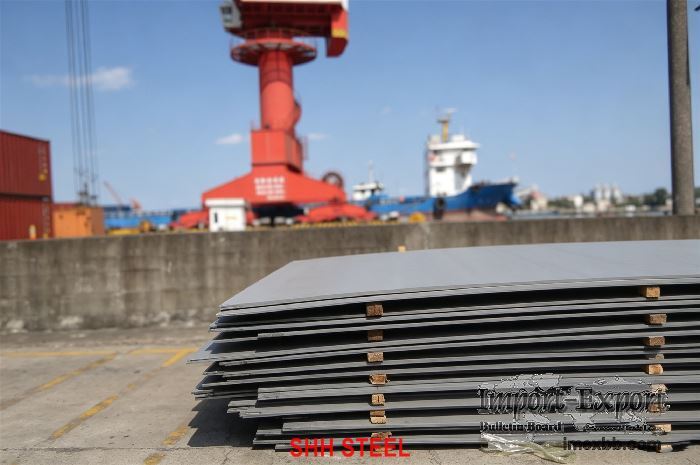

ASTM A515 Grade 70 High-Temperature Pressure Vessel Steel Plate - SHH STEEL

ASTM A515 Grade 70 High-Temperature Pressure Vessel Steel Plate - SHH
STEEL

1. Product Introduction
SHH STEEL supplies ASTM A515 Grade 70 / A515Gr70N high temp vessel
plate to ASTM A515/A515M, 485–620 MPa. China mill-Direct Supply, EN
10204 3.1/3.2. Applications: Boilers, Pressure vessels,
Petrochemical, Power, Export dual-cert jobs, Fabrication. Equivalent
Grades: ASTM A515 Gr 70 / ASME SA515 Gr 70 / JIS G3103 SB450 (near) /
GB Q345R / EN 10028-2 P355GH — Material Specification: ASME SA-515
/ ASTM A515 — Delivery: Normalized (N) or As-rolled (AR) with N
option. Width: Up to about 4600 mm / 12000 mm. ASTM A515 Grade 70 is
the grade most buyers actually type when they need carbon-silicon
plate for warm-to-hot boilers and vessels. SHH STEEL supplies it as
China mill-Direct Supply to ASTM A515/A515M. The same plate is
written A515 Gr.70, A515GR70, A515 Grade 70, A515Gr70, A515Gr70N,
ASME SA515 Grade 70, SA515 Gr.70, SA515GR70 and SA-515 Grade 70.
A515Gr70N is not a separate ASTM grade. The “N” is mill shorthand
for normalized delivery, which is how most thick A515 Grade 70 plate
is sold. ASTM A515/A515M is the product specification. ASME SA-
515/SA-515M is the Code companion. Grade 70 is the highest-strength
current grade in this specification.

2. Standards We Can Supply
ASME SA-515 / ASTM A515 — Delivery: Normalized (N) or As-rolled
(AR) with N option. Equivalents: ASTM A515 Gr 70 / ASME SA515 Gr 70 /
JIS G3103 SB450 (near) / GB Q345R / EN 10028-2 P355GH — Material
Specification: ASME SA-515 / ASTM A515 — Delivery: Normalized (N)
or As-rolled (AR) with N option.

3. Grades We Can Supply
ASTM A36/SA36, A283 Gr.C, A285 Gr.C, A515 Gr.70, A516 Gr.60/70
(SA516), A537 Cl.1, A572 Gr.50/60, A387 Gr.11/22 Cl.2, A514 Gr.Q, EN
10025-2 S355J2.

4. Size Range
Width / length: Up to about 4600 mm / 12000 mm.

5. Processing
Flame/plasma cutting to size or drawing, cut-to-length, bending and
forming, welding and CNC machining services.

6. Delivery Time
Stock: 5-6 days. Normal production: 30-40 days.

7. Payment Terms
T/T and L/C accepted; specific payment terms are negotiated per
order.

8. Trade Terms
FOB / CIF / CFR.

9. Delivery Condition
Normalized (N) or As-rolled (AR) with N option.

10. Quality Assurance
Mill test certificate supplied to EN 10204 3.1/3.2 as stated for this
grade.

11. Company Capability
SHH STEEL (Shanghai Shenghonghe Import & Export Co., Ltd.) is a China
mill-direct steel exporter serving manufacturing, energy,
construction, marine, petrochemical and machinery industries, with
custom sizes and in-house cutting, forming, welding and machining.
Export seaworthy packing.
