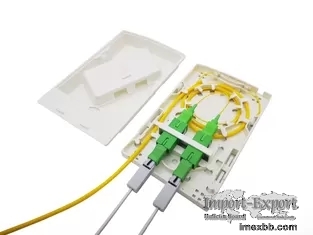

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount

FTTH FAT 2 Ports Fiber Terminal Termination Box Wall Outlet SC Flame
retardant White ABS


This fiber access terminal is 2cores, ftth mini wall outlet, it mainly used
wall mounted or desktop in ftth network, The interface is SC adapters, UPC
or APC is ok, it is good choice for CATV, CCTV or GPON networks too.


Features

With protection doors dustproof, IP30 dustproof,indoor use
Suitable for many types of modules, used in cabling network area subsystem
Embedded type surface, easy for installation and removal
SC simplex or LC duplex coupler surface mounted installation and concealed
panel installation
All modules are solderless mode

Technical specification


Item Parameters
Cable used 2.0*3.0mm drop cable or indoor cable
Fiber cladding diameter 125um (G652 or G657)
Fiber diameter 250um or 900um
Fiber mode Single mode and multimode
Tensile strength >50N
Operating temperature -40~+85°C
Adapter SC&LC
Insertion loss ≤0.2dB (1310&1550nm)
Fiber count 2cores
