Dynamic Shaker Random Vibration Testing of Shipping Containers ASTM D4728

Dynamic Shaker Random Vibration Testing of Shipping Containers ASTM D4728

ASTM_4728.pdf





Introduction:

Vibration testing system simulate the vibration environment under the
laboratory condition, and test the impact strength as well as reliability of
various vibration test applications. In the laboratory, with the aid of
vibration testing system, simulations of reproduction of sinusoidal, random,
resonant search and dwell, classical shock and road models, etc. can be
achieved. It is essential for product quality assurance, new product research
and development.

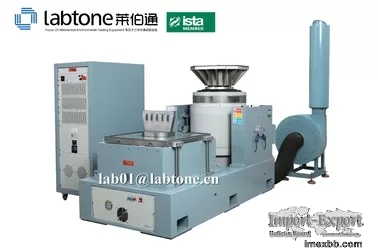

A complete set of vibration testing system is composed of shaker, power
amplifier and vibration measuring control system, in accordance with the
relevant national and international standards (such as: MIL-STD, DIN, ISO,
ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for
establishing product quality inspection.




Technical Specifications:


Model EV320 EV220
Vibration Generator VG2200/76 VG2200/50
Frequency(Hz) 1-3000 1-3000
Max Exiting Force(kg.f) 2000 2000
Max. Displacement (mmp-p) 76.2 50.8
Max. Acceleration(g) 80 80
Max. Velocity(cm/s) 200 200
Payload(kg) 300 300
Armature Mass(kg) 25 22
Armature Diameter(mm) φ320 φ320
Cooling Method Forced Air Cooling
Utility
Requirements 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 40 40



Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Main Applications:
Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening


Horizontal oil film slip table


The horizontal slip table is designed to have high tilting moment and lateral
restriction. This design concept is combined with standard horizontal slip
table to enable high dynamic moment limit and keep guide oil film damping
feature. The horizontal slip table is composed of a slipper, a connector, a
natural granite slab, horizontal slip table base and an independent oil source.

Dynamic Shaker Random Vibration Testing of Shipping Containers ASTM D4728 0


Customer Services


Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test
run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault
diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to
eliminate equipment and anthropogenic hazards. This is to ensure long term and
stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s
needs.
