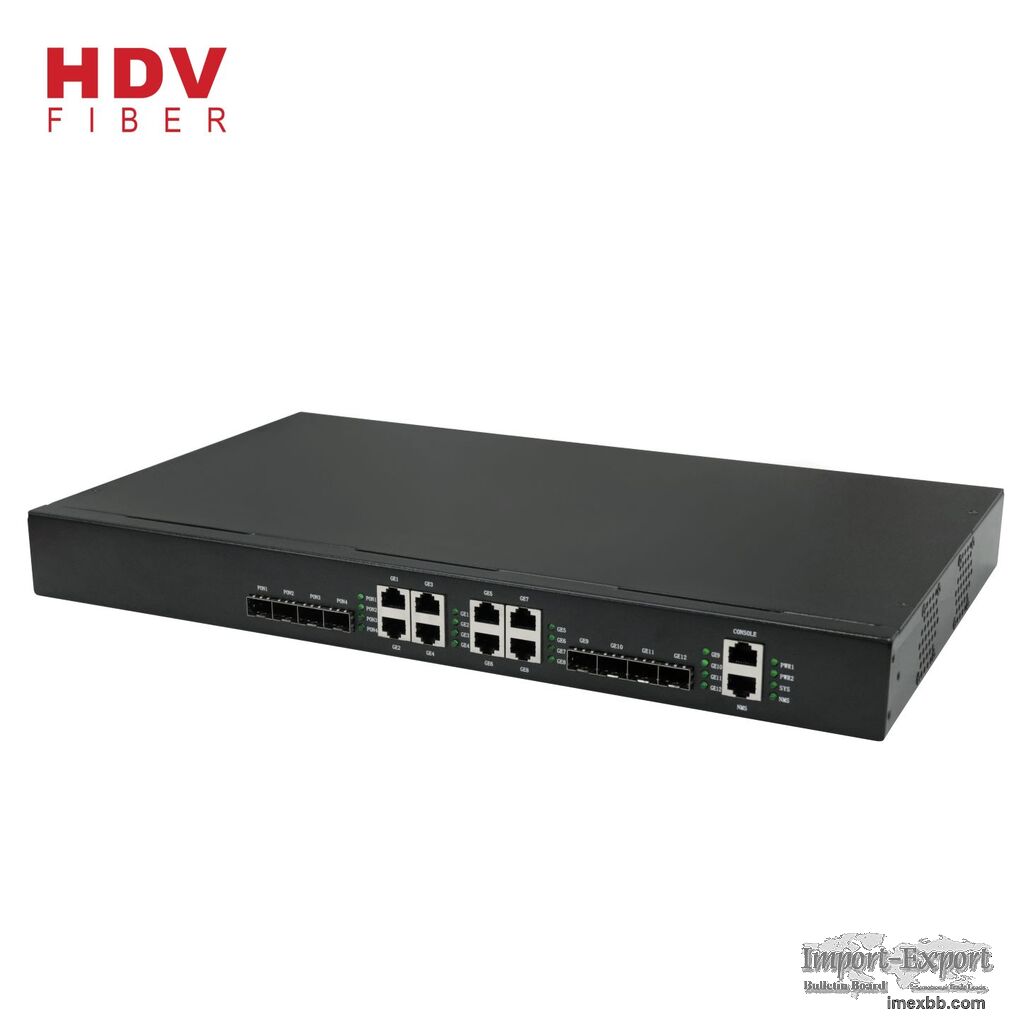

Factory direct price FTTH fiber bdcom 4 pon epon olt

Short Description:
EPON OLT is a high integration and medium capacity cassette EPON OLT
designed for operators’access and enterprise campus network.

It follows the IEEE802.3 ah technical standards and meets the EPON OLT
equipment requirements of YD/T 1945-2006 Technical requirements for access
network——based on Ethernet Passive Optical Network (EPON) and China telecom
EPON technical requirements 3.0. EPON OLT series possesses excellent
openness, large capacity, high reliability, complete software function,
efficient bandwidth utilization and Ethernet business support ability,
widely applied to the operator front-end network coverage, private network
construction, enterprise campus access and other access network

The OLT provides 4 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and
4*GE sfp optical for uplink. The height is only 1U for easy installation
and space saving. It adopts the advanced technology, offering efficient
EPON solution. Moreover, it saves a lot cost for operators for it can
support different ONU hybrid networking.

(EPON OLT 4 port )
ITEM: 4/8 PON port,
Service Port: 4/8 PON port 8*GE, 4"10G SFP optical
Redundancy Design Dual Voltage Regulators
Power Supply ‘AC: input100~240V * 2 47/63Hz
Power Consumption =45W
Dimensions (Width x Depth x Height) 440mm x44mmx260mm
Weight (Full-Loaded) =4.5kg
Environmental Requirements:
Working temperature: ~10°C~55°C
Storage temperature: -40°C~70°C
Relative humidity: 10%~90%, non-condensing

Minimum Order: 1 pieces

Factory direct price FTTH fiber bdcom 4 pon epon olt
