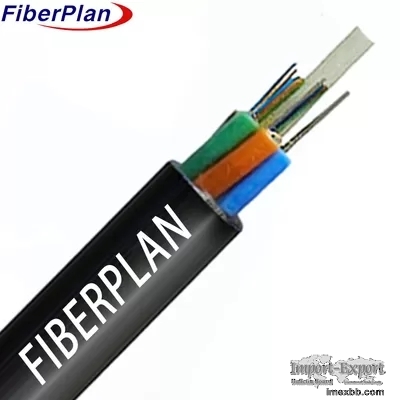

Outdoor Non Armored Single/Multi Mode Fire Retardent GYFTZY



Description

The arrangement involves placing fibers within a high modulus plastic loose
tube, filled with a water-resistant

compound. An essential component, the Fiber Reinforced Plastic (FRP), serves
as the non-metallic strength

member positioned at the core. Surrounding this strength member, the tubes
and fillers are stranded to form a

compact, circular core. To safeguard against water ingress, the cable core
is filled with a protective filling co-

mpound. Finally, the cable is encased with a PE sheath, completing the
assembly.



Application

☆ Ideal for outdoor distribution networks.

☆ Well-suited for trunk power transmission systems.

☆ Reliable for access networks and local networks in areas with high
electromagnetic interference.



Characteristics

☆ Excellent mechanical and temperature performance.

☆ High-strength loose tube with hydrolysis resistance.

☆ Specialized tube filling compound ensures critical fiber protection.

☆ Superior crush resistance and flexibility.

☆ Full cable core filling with the tube filling compound.



Structure details

Specification 6F 12F 24F 36F 48F 72F 96F 144F
No. of Fiber 6 12 24 36 48 72 96 144
No. of Tube 1 2 4 3 4 6 8 12
Fiber per Tube 6 6 6 12 12 12 12 12
No. of Filler Rod 4 4 1 2 1 0 0
0
Tube Diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
2.0
Thickness of Loose Tube 0.3 0.3 0.3 0.3 0.3 0.3 0.3
0.3
Nom. Outer Diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2
10.8 13.4
Nom. Jacket Thickness (±0.1mm) 1.6 1.6 1.6 1.6 1.6 1.6
1.7 1.7
Loose Tube Material PBT PBT PBT PBT PBT PBT PBT
PBT
Loose Tube Color Standard spectrum Standard spectrum
Standard spectrum Standard spectrum Standard spectrum
Standard spectrum Standard spectrum Standard spectrum
Central Strength Member Material FRP FRP FRP FRP FRP
FRP FRP FRP
Central Strength Member Diameter 1.4mm (6-48F) 1.4mm (6-48F)
1.4mm (6-48F) 1.4mm (6-48F) 1.4mm (6-48F) 2mm (72-144F) 2mm (72-
144F) 2mm (72-144F)
Layer - - - - - PE (for 96F-144F only) PE
(for 96F-144F only) PE (for 96F-144F only)
Filler Rod Material PP PP PP PP PP - -
-
Filler Rod Color Black Black Black Black Black - -
-
Water Blocking System Material Filling gel Filling gel Filling gel
Filling gel Filling gel Filling gel Filling gel Filling gel
Outer Sheath Material PE PE PE PE PE PE PE
PE
Outer Sheath Color Black Black Black Black Black Black
Black

Mechanical and environment performance

Property Long Term Short Term
Tensile Strength 600N 1500N
Crush Load 300N/100mm 1000N/100mm
Bending Radius Dynamic: 20D Static: 10D
Temperature Specifications Storage: -20°C to +70°C
Installation: -10°C to +60°C


Fiber performance

Fiber Style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding Diameter um 125±1 125±1 125±1
Cladding Non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating Diameter um 242±7 242±7 242±7
