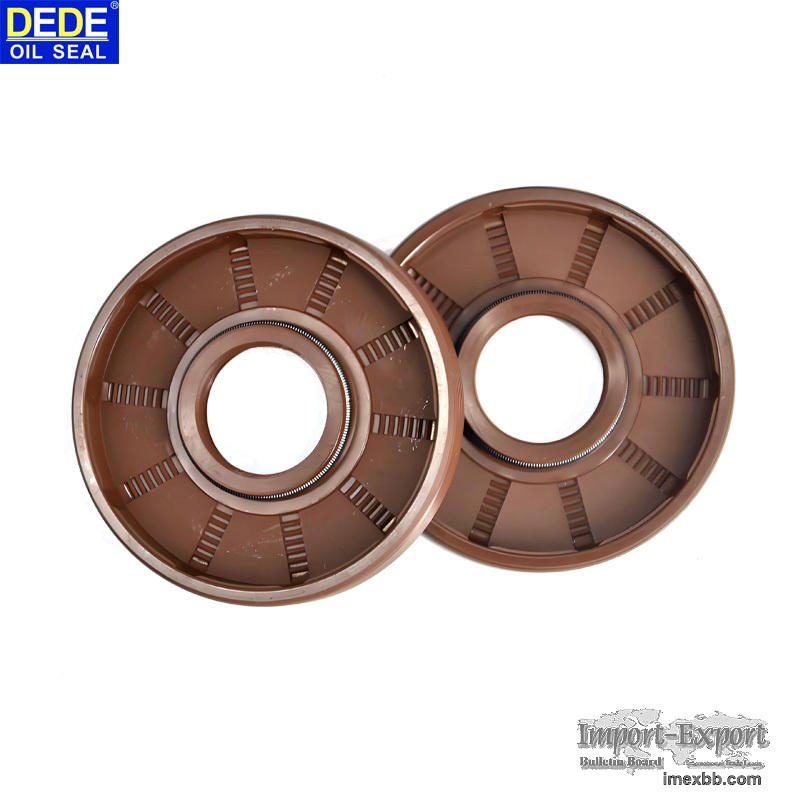

PTFE Skeleton Oil Seal for Industrial Robot Joints Designed for ±180 Degree

In industrial robot joints, the motion of the shaft rarely resembles the
continuous rotation found in conventional machinery.

Instead, many joints operate through wide-angle oscillation often reaching
±180°.

This motion pattern may appear gentle, yet it places a unique set of demands
on skeleton oil seals.

During oscillation, the sealing lip repeatedly transitions between full-film
lubrication and boundary lubrication.

At each reversal point, the oil film thins, local temperature rises, and
wear concentrates on a narrow track.

For traditional elastomeric skeleton oil seals, this leads to increased
torque fluctuation, accelerated wear, and eventually leakage.

To make a skeleton oil seal truly compatible with this motion, the design
must be reconsidered from the ground up—materials, lip geometry, and system
integration all play essential roles.

Materials: Prioritizing Low Friction Over Chemical Resistance

In oscillating applications, frictional behavior becomes more important than
simple media resistance.

PTFE and PTFE‑based composites have become the preferred choice for the
primary sealing lip due to:

inherently low friction

stable transfer film formation

reduced heat generation under frequent reversals

Elastomers such as FKM or HNBR remain valuable as secondary lips, dust
exclusion elements, or static sealing components.

FFKM, while excellent in aggressive chemical environments, offers limited
advantages in grease-lubricated robot joints and is typically reserved for
niche applications.

Lip Geometry: Designing for Oscillation, Not Rotation

A symmetric lip profile—common in traditional skeleton oil seals—is not
ideal for oscillating motion.

Engineers often adopt directional PTFE lip geometries that encourage a
subtle return flow of lubricant during motion.

This does not create a pumping effect in the traditional sense, but it helps
maintain lubrication near the contact zone and reduces the risk of dry
running at reversal points.

Spring Energization: Maintaining Consistent Contact Pressure

PTFE lips are commonly paired with a spring energizer.

The spring ensures:

stable initial contact pressure

automatic compensation for wear

predictable torque behavior over the seal’s service life

For robot joints, where torque ripple can influence control accuracy, this
stability is particularly important.

System-Level Considerations: The Seal Does Not Work Alone

The performance of a seal in a robot joint is closely tied to the
surrounding system:

shaft hardness and surface finish

lubricant selection and replenishment

pressure balance within the cavity

installation accuracy and concentricity

A well-designed seal can only perform as intended when these factors are
properly managed.

Adapting a skeleton oil seal to ±180° oscillation is not a matter of
simply upgrading materials or adding a spring.

Effective solutions combine PTFE primary lips, elastomeric support elements,
spring energization, and precise manufacturing.

As robotics continues to evolve toward higher precision and longer service
intervals, sealing technology will follow—moving toward lower friction,
modular designs, and closer integration with lubrication systems.

Minimum Order: 1000 pieces
