Shenzhen Factory FTTH Huawei Wifi Onu 1GE+1FE+WIFI GPON ONT ONU XPON

1. Overview
* HUR2202XR is designed as HGU (Home Gateway Unit) in different FTTH
solutions. The carrier-class FTTH application provides different services
access.
* HUR2202XR is based on mature and stable, cost-effective XPON technology.
* HUR2202XR adopts high reliability, easy management, configuration
flexibility and good quality of service guarantees to meet the technical
performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of
ITU-TG.984.X.

2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable
system.

3. Hardware Specification

Technical item
Details
PON Interface
1 GPON BOB (Class B+/Class C+)
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength: TX: 1310nm, RX: 1490nm
Optical Interface: SC/UPC Connector
Design Scheme
RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B)
Chip Spec: CPU 625MHz,DDR2 64MB
Flash: SPI Nor Flash 16MB
LAN Interface
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet
interfaces. Full/Half, RJ45 connector
Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED: 7 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2
Push-B , utton 2, For Function of Reset, WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply: DC 12V/1A
Power Consumption: ≤6W
Dimension: 180mm×107mm×28mm(L×W×H)
Net Weight: 0.15Kg

Minimum Order: 1 pieces

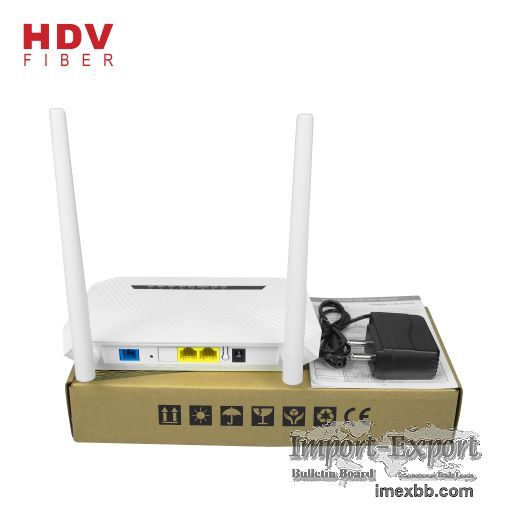

Shenzhen Factory FTTH Huawei Wifi Onu 1GE+1FE+WIFI GPON ONT ONU XPON
