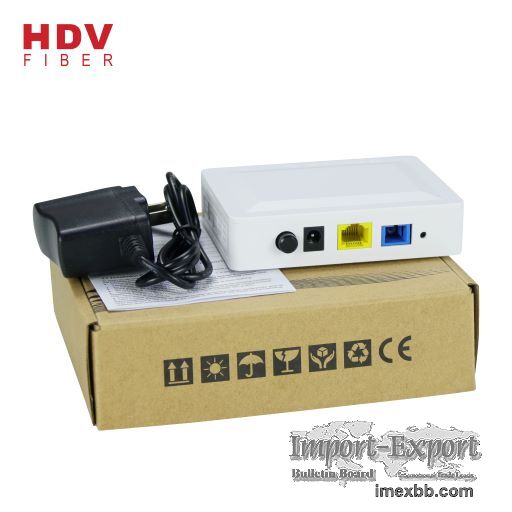

Wholesale price 1GE port Dual Mode EPON GPON GEPON Onu XPON huawei ftth

1. Overview
* HTR5033X is designed as HGU (Home Gateway Unit) in deferent FTTH
solutions,The carrier-class FTTH application provides data service access.
* HTR5033X is based on mature and stable, cost-effective XPON technology.
Itcan switch automatically with EPON and GPON mode when it access to the
EPON OLT or GPON OLT.
* HTR5033X adopts high reliability, easy management, configuration
flexibility and good quality of service (QoS) guarantees to meet the
technical performance of the module of China Telecom EPON CTC3.0 and GPON
Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support ONU auto-discovery/Link detection/remote upgrade of software
* Support RoutePPPoE/IPoE/Static IP and Bridge mode
* Support IPv4/IPv6 Dual mode
* Support Firewall function and IGMP multicast feature
* Support LAN IP and DHCP Server configuration
* Support Port Forwarding and Loop-Detect
* Support TR069 Remote Configuration and maintenance
*Specialized design for system breakdown prevention to maintain stable
system
3. Hardware Specification
Technical item
Details
PON Interface

1 GPON BOB （Class B+/Class C+）
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength: TX: 1310nm, RX: 1490nm
Optical Interface: SC/UPC Connector
Chip Spec: RTL9601D ,CPU 300MHz,DDR2 32MB
Flash: SPI Nor Flash 16MB
LAN Interface: 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45
connector
LED: 4 LED, For Status of PWR、LOS、PON、LINK/ACT
Push-Button
2,For Function of Power on/off,Reset
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply: DC 12V/0.5A
Power Consumption: <3W
Dimension: 120mmx78mmx30mm(L×W×H)
Net Weight: 0.13Kg

Minimum Order: 1 pieces
