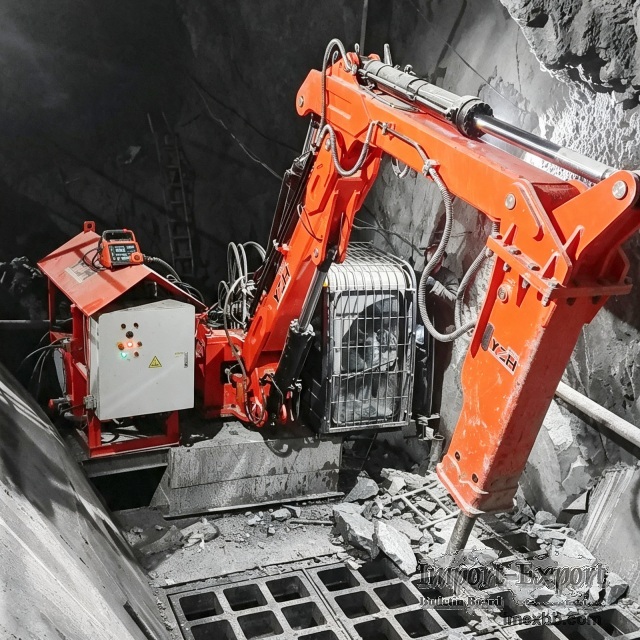

YZH BC450 Stationary Pedestal Rockbreaker Boom

A stationary pedestal rockbreaker boom is a fixed‑mounted hydraulic breaking
system installed above or beside crusher feed openings, hoppers, grizzlies,
chutes and material bins. It is designed to handle oversize rocks, clear
blockages and reduce unplanned downtime in mines, quarries and aggregate
processing plants.
With a robust pedestal base, multi‑degree‑of‑freedom boom movement and
compatible hydraulic breaker hammer, the system delivers controlled, efficient
breaking performance while improving on‑site safety and reducing manual
intervention in high‑risk areas.

Main parameters
Model No.:BC450
Boom Weight (without hammer):6789
Max. Horizontal working radius:7400
Max. Vertical working radius:5300
Min. Vertical working radius:2510
Max. Height:4743
Max. Working Depth:4457
Rotation:170
Hydraulic hammer model:YZH1350/YZH1400
Power of Hydraulic Power Unit:55/75

Main benefits
1. Fixed Pedestal Design for Stable Breaking Performance
The stationary pedestal rockbreaker boom is mounted on a reinforced concrete
foundation or steel base structure, providing high stability during continuous
breaking operations. This fixed installation helps maintain consistent impact
force and reduces vibration transfer to surrounding equipment.

2. Effective Oversize Rock Handling
One of the main purposes of this system is to break oversize rocks that cannot
enter the crusher smoothly. By reducing large boulders into smaller, manageable
material, the system helps improve crusher feed efficiency and prevents
blockages that can stop production.

3. Remote Control Operation for Safer Worksite
The system can be equipped with wireless remote control, allowing operators to
complete breaking tasks from a safer distance. This reduces the need for
workers to stay close to the crusher feed area, where falling rock, dust and
equipment movement may create safety risks.

4. Robust Structure for Harsh Conditions
Built with heavy‑duty steel plates, reinforced boom sections and high‑quality
hydraulic components, the stationary pedestal rockbreaker boom is designed for
long‑term operation in mining, quarry and aggregate plant environments. It can
handle frequent impact loads, dust, vibration and temperature variations.

5. Customizable Configuration
Different crushing stations have different installation spaces, material
hardness, blockage points and production requirements. Therefore, the
stationary pedestal rockbreaker boom can be customized according to actual site
conditions.

Application Scenarios
1.Mining
Suitable for primary crushing stations where large rock blocks frequently enter
the feed opening.

2.Quarry
Ideal for quarry crushing plants that require continuous and reliable oversize
rock breaking.

3.Aggregate Processing Plant
Helps maintain smooth material flow in hoppers, chutes and crushing circuits.

4.Cement Plant
Used for limestone and hard material handling near crusher feed openings.

5.Metallurgical Plant
Suitable for bulk material blockage clearing and heavy‑duty feeding systems.
---------------
If you are looking for a reliable stationary pedestal rockbreaker boom for your
crushing station, we can provide technical consultation, layout design,
equipment selection and customized solutions.

Minimum Order: 1 sets
