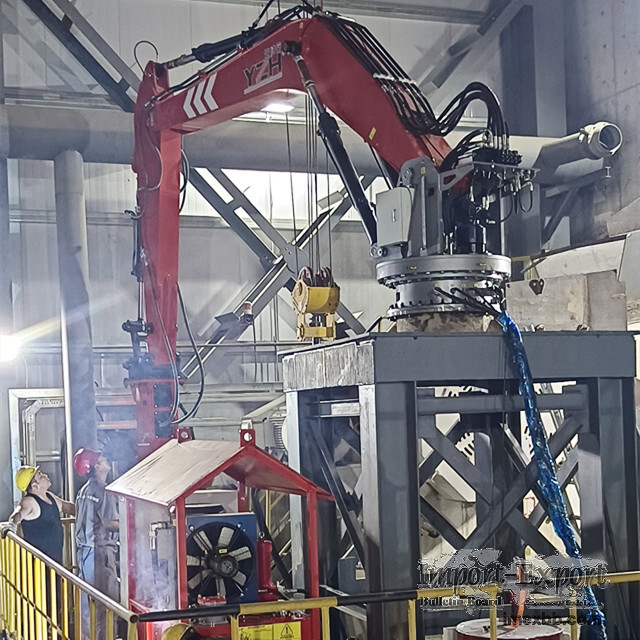

YZH WHEN1410 Stationary Pedestal Rockbreaker

YZH WHEN1410 Stationary Pedestal Rockbreaker is a specialized equipment
designed for secondary crushing of large-sized materials in mining, metallurgy,
and related industries. By replacing attachments (such as hydraulic hammers or
lotus claws), it can perform multiple functions including crushing, grabbing,
and demolition.
Main parameters of WHEN1410 Stationary Pedestal Rockbreaker:
Core Function: Secondary crushing and processing of large-sized materials
Primary Components: Hydraulic power unit (power source), slewing bearing
system, boom/arm working system, control system
Drive Method: Electro-hydraulic drive
Control Method: Cab operation, remote control (including video remote control)
Horizontal Working Range: 4.88 meters to 20.4 meters
The Features of the YZH WHEN1410 Stationary Pedestal Rockbreaker:
1. Power and Energy Efficiency Characteristics
Pure Electric Drive: Utilizes electric motors as the power source, emitting
zero exhaust during operation.
Extremely Low Energy Consumption: Compared to diesel equipment of equivalent
power, energy consumption is reduced by over 50%, with operating costs
approximately 1/6th of those for excavators of similar power.
2. Structural and Performance Features
High-Strength Design: Primary structural components utilize premium special
steel or manganese steel, offering lightweight construction, high load-bearing
capacity, and superior wear resistance.
Multi-Functional Attachments: Front end supports rapid interchange of hydraulic
hammers, lotus claws, hydraulic shears, grapples, and other attachments,
enabling “one machine, multiple functions.”
Flexible Working Range: Wide horizontal reach with swing angles up to 170° or
360°, covering extensive areas.
3. Intelligent Control and Safety Features
Multiple Control Methods: Supports cab operation, wired/wireless remote
control, and can be upgraded to remote video control for extended reach.
Enhanced Safety: Enables remote operation, keeping workers completely out of
hazardous zones like falling rocks and dust, significantly improving safety.
4. Environmental Adaptability and Reliability

Harsh Environment Adaptability: Features a sealed structure and can be equipped
with low-temperature heating or high-temperature cooling devices, enabling
operation in diverse conditions like underground mines, high altitudes, and
high-temperature steel mills.
High Reliability: The core hydraulic system delivers dependable performance
with a significantly reduced failure rate compared to traditional equipment,
ensuring continuous operation.
The Application of the YZH WHEN1410 Stationary Pedestal Rockbreaker:
This equipment is specifically designed to address bottlenecks in production
lines. Below are some typical application scenarios:
1. Mines and Aggregate Quarries
Scenario: Installed at the discharge port of equipment such as jaw crushers or
gyratory crushers to break up large, jammed ore blocks, preventing blockages
and protecting downstream crushers.
Function: Ensures continuous production line operation, boosting primary
crusher output by up to 20%.
