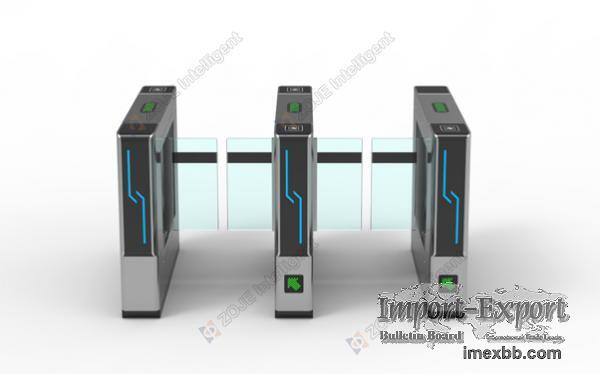

ZOJE Optical Speed Gate Turnstile Model No. ZOJE-BST300

Features of ZOJE Optical Speed Gate Turnstile Model No. ZOJE-BST300
As they allow quick access, optical turnstile are very popular among
different types of turnstiles. Any turnstile gate with optical components can
be defined as a speed gate due to its high throughput ability.
With turnstile card reader and pairs of infra-red sensors applied, these
speed gate turnstiles will be able to confirm their entry credentials rapidly
and process pedestrian traffic quickly, which makes them outstanding of all the
turnstile gates.
These optical speed gate turnstiles are able to control one-way or bi-
directional enter or exit accordingly.
Standard and customized width are both available for these speed gate
turnstiles.
Swing doors can be illuminated with additional colorful LED lights to make
them more beautiful.
Green LED indicators will show people the correct passage to go after they
have been confirmed by the access control. Indicators can be turned into a red
“X” signal when necessary indicating people not to go from this channel.
Our speed gate turnstiles are widely applied to high pedestrian flow areas.
They are popular incorporation headquarters, public library lobbies, subway
stations, university facilities, etc. These turnstile gates will carry out
their duties to regulate pedestrians orderly without failure during rush hours.
Optical turnstile Model No. ZOJE-BST300 will be perfectly suitable for any
modern buildings thanks to its unique and futuristic styling.

Size and shapes can be customized. Welcome to contact us for more details.
Specification of ZOJE Optical Speed Gate Turnstile Model No. ZOJE-BST300
Standard model ZOJE-BST300
Turnstile type Speed gate turnstile
Cabinet material 304 stainless steel (standard)
316 stainless steel (optional)
Door material Acrylic (standard)
Tempered glass (optional)
Finish Stainless steel satin finish
Function Fail-safe, anti-clamping
Dimension 1400*200*1000 mm (L*W*H)
Passage width ≤550 mm
Direction Single / bidirectional
Power supply AC110–220 V, 50/60Hz
Unlock time 0.2s
Flow rate 35 person/min
Working environment Indoor
Indicator lights Yes
Motor DC brush motor (standard)
DC brushless motor (optional)
Servo motor (optional)

ZOJE is a professional optical turnstile manufacturers, we provide flap
barrier, used security turnstiles, single turnstile, parking turnstile,
turnstile security systems swing gates and etc. Want to know turnstile gate
dimensions or more? Please contact us

Minimum Order: 1 sets
