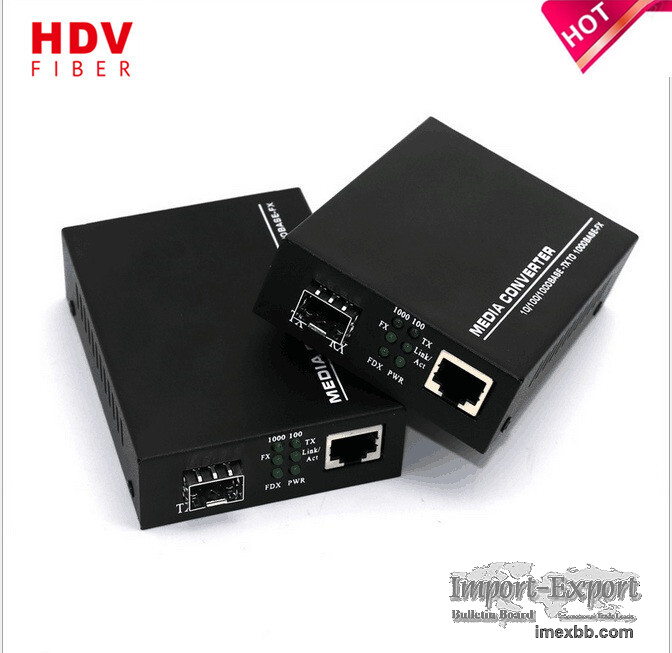

10/100/1000M SFP media converter

Short Description:
Features： In accordance with Ethernet standards IEEE802.3,
10/100/1000Base-TX to 1000Base-FX Supported Ports: LC for optical fiber;
RJ45 for twisted pair Auto-adaptation rate and full/half-duplex mode
supported at twisted pair port Auto MDI/MDIX supported without need of
cable selection Up to 6 LEDs for status indication of optical power port
and UTP port External and built-in DC power supplies provided Up to 1024
MAC addresses supported 512 kb data storage integrated, and 802.1X original
MAC address authentication supported Conflicting frames detection in half-
duplex and flow control in full duplex supported LFP function can
selectable before order

1.Introduction
10/100/1000M adaptive fast Ethernet optical Media Converter is a new
product used for optical transmission via high-speed Ethernet. It is
capable of switching between twisted pair and optical and relaying across
10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance,
high-speed and high-broadband fast Ethernet workgroup users’ needs,
achieving high-speed remote interconnection for up to 100 km’s relay-free
computer data network. With steady and reliable performance, design in
accordance with Ethernet standard and lightning protection, it is
particularly applicable to a wide range of fields requiring a variety of
broadband data network and high-reliability data transmission or dedicated
IP data transfer network, such as telecommunication, cable television,
railway, military, finance and securities, customs, civil aviation,
shipping, power, water conservancy and oilfield etc, and is an ideal type
of facility to build broadband campus network, cable TV and intelligent
broadband FTTB/FTTH networks.

Minimum Order: 1 pieces
