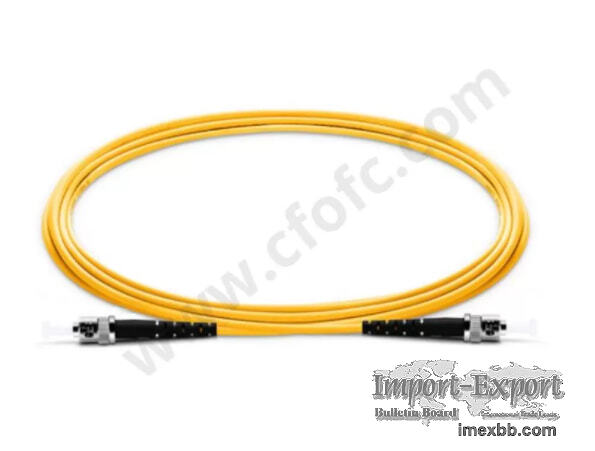

Fiber Optic ST-ST Singlemode Simplex patchcord 3M/5M/10M

SC/FC/ST/LC Single-core Dual-core Patch Cords LC Uniboot Passive Optical Patch
Cords
Compared to OM1/0M2, OM3, OM4 and OM5 optical fibers are suitable for high
bandwidth:
Not exceeding 500 short-distance to medium-distance communications, while OS2
(G.652.D/G.657.A1/G.657.A2/G.657.B2/G.657.B3) optical fiber types are suitable
for long-distance, high-performance communication systems.

Features:
Provide a variety of connector types, with more choices for Class B/C/D, and
competitive cost
Ceramic ferrule has an average of more than 1,000 plug-in and pull-out tests,
with stable performance and reliable quality.3.Excellent mechanicaendurance
Color-Coded Connector Boots for Easy Identification
Corning ClearCurve® YOFC Fiber with 10mm Min. Bend Radius
Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
Availa , ble in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and
double sheath (4.5mm to 5.5mm)
RoHS2 Certification

Technical Parameters:
Connector A LC Connector B LC
Polish Type UPC to UPC Glass Fiber Corning Clear Curve®
Fiber Mode OS2 SMF 9/125μm Wavelength 850/1300nm
Fiber Count 1 Fiber Polarity
Cable Outside Diameter(OD) 0.9mm,2.0mm,3.0mm Cable Jacket
Plenum(OFNP)
Min.Bend Radius(Optical Fiber) 7.5mm Min.Bend Radius (Fiber Cable)
20/10D(Dynamic/Static)
Connector Durablity 500 times Tensile Strength(Long/ShortTerm)
80/240N
Insertion Loss 0.25dB Max(0.15dB Typ.) Return Loss ≥50dB
Attenuation at 850nm ≤2.3dB/km Attenuation at1300nm ≤0.6dB/km
Operating Temperature -10 to 70℃(14 to 158F) Storage Temperature -40 to
85℃
Glass Fiber Corning, YOFC Operating Temperature -10 to +70°C

Applications:
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical

Fiber optic patch cords ensure seamless and stable connections between your
servers, workstations, and other hardware with specific lengths of single-mode
or multimode fiber cables. If you are choosing duplex fiber cables, they
definitely have the appropriate micron fiber for high bandwidth and high-speed
data transmission on gigabit Ethernet. There are various technical differences
between different sizes and types of fiber cables, so you must first understand
these differences to select the best options online. Today, you can purchase LC
cables, SC cables, OM3 cables, and OM4 cables from our store.
