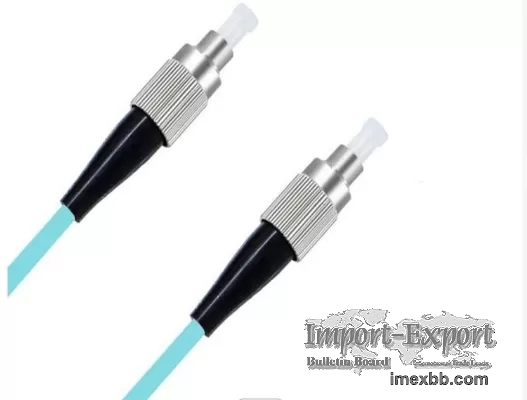

FTTH Normal Fiber Optic Patch Cable Multimode Duplex Om3 Om4 LC Sc FC St Fi

PRODUCT DESCRIPTION
FTTH Normal Fiber Optic Patch CordMultimode Duplex Om3om4 LC Sc FC St Fiber Optic
Patch Cord

Product Description
Product Parameters

Technical parameters

Characteristic Item Test condition Single mode fiber Multimode Fiber
Optical property Insertion Loss (dB) UPC LED <0.2dB <0.4dB
APC <0.3dB <0.4dB
Return Loss (dB) UPC LD >55dB >25dB
APC >65dB -
Mechanical test Impulse test 1.8 height, 8 times <0.1dB <0.1dB
Vibration test 10-60Hz, 1mm full amplitude <0.1dB <0.1dB
Plug service life Above 1000times <0.1dB <0.1dB
Tensile strength >50N <0.1dB <0.1dB
Environmental property High temperature test +85ºC, 96hs <0.2dB <0.2dB
Cryogenic test -40oC,96hs <0.2dB <0.2dB
Damp heat test +40°C,90-95%RH,96hs <0.2dB <0.2dB

Ordering information
Cable outer diameter Ψ0.9mm,Ψ1.6mm,Ψ2.0mm,Ψ3.0mm or customer specified
Cable length 1m,3m,5m,15m,25m,30m or customer specified
Fiber type B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125,
OM3=Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550
Fiber count Simplex, Duplex
Outer jacket material PVC,LSZH
Outer jacket color Refer to Chromatogram
Connector A side Connector type LC, SC,ST, FC
Ferrule type UPC, APC
Connector B side Connector type LC, SQ,ST,FC
Ferrule type UPC, APC
Marking&package Per customer's request or factory standard
