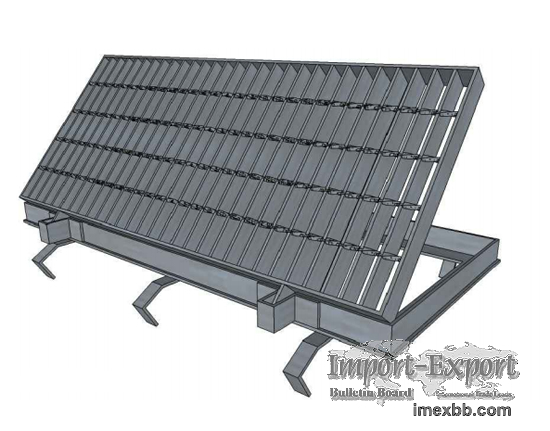

Galvanized Steel Grating

Galvanized Steel Platform Grating - Galv Grates for Operation Platform of
Offshore Oil Rigs
Galvanized steel grating with heavy zinc coating protection serves widely as
strong, quick and durable bearing structural elements in offshore oil rig
platforms, refineries, walkways, and many other industries. Steel gratings
galvanized make an better choice over non-galvanized steel bar grating due to
the fact that the galvanized coating helps protects the steel from corrosion.

Platform Grating, is mostly made of heavy welded bar grating galvanised. Steel
gratings serrated or grating panels combined with diamond pattern checker plate
are safer and popular platform grating solutions.

We supply quality galvanized gratings to Europe, Canada, USA, Japan and many
other countries.



Galvanized Steel Grating Panels
Grating, Hot Dip Galvanized, serrated to BS 4592, Size 19ft x 3ft
Rectangular pattern with hexagonal or square twisted cross bars.
- Size of bearing bars: 40mm x 5mm serrated.
- Spacing between bearing bars: 30mm, connected together
with 8mm hexagonal twisted rod every 100mm.
- Top surface of bearing bars shall be serrated.
- Grating panels shall be hot dip galvanized of minimum 460GM/M ^ 2.
- Pitch of cross bars: 50mm.
- Grating suitable for Max. SPAN 67" for 1/4" deflection under uniform working
load of 6.6 KN/M ^ 2.
- The grating bar shall be closed end.
Common grating dimensions: 1" x 1/8" x 36" x 24"
