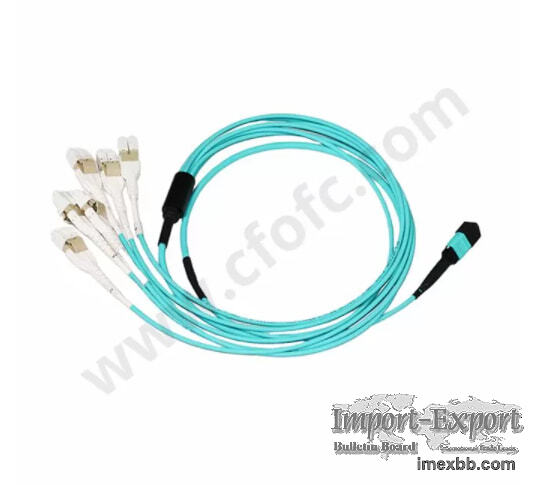

12F MPO MTP® Female to LC Uniboot Fanout Cable Datacenter

MTP@ MPO Fan-out Patch Cord is a cost-effective product designed to replace
time-consuming on-site termination operations. It is suitable for high-density
fiber optic cabling environments in data centers with limited space and high
cable management requirements. It is used to connect DO (data center), ODF
LC/SC/ST/FC panels or various direct connection solutions between SFP
modules.

MTP@ MPO Fanout Harness Patch Cord is optimized for 40G QSFP+ PLR4 to 10G SFP+
LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G
QSFP FR optics direct connection and high-density data center applications.
*MTP is a registered trademark of US Conec Ltd.

Feature
USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand
Different MT inserts available (Base-8, Base-12,Base-16, Base-24)
Color-Coded Connector Boots for Easy Identification
Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius
Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
Availa , ble in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and
double sheath (4.5mm to 5.5mm)
RoHS2 Certification
Technical Parameters
Connector A MPO MTP® Female (Pinless) Connector B LC Duplex
Polish Type UPC to UPC Glass Fiber Corning Clear Curve®
Fiber Mode SM/OM1/OM2/OM3/OM4 Wavelength 850/1300nm
Fiber Count 8-48 Fibers Polarity Type A / B /C
Cable Outside Diameter(OD) 3.0mm-17.3mm Cable Jacket Plenum(OFNP)
Min.Bend Radius(Optical Fiber) 7.5mm Min.Bend Radius (Fiber Cable)
20/10D(Dynamic/Static)
Connector Durablity 500 times Tensile Strength(Long/ShortTerm)
80/240N
Insertion Loss 0.35dB Max(0.15dB Typ.) Return Loss ≥20dB
Attenuation at 850nm ≤2.3dB/km Attenuation at1300nm ≤0.6dB/km
Operating Temperature -10 to 70℃(14 to 158F) Storage Temperature -40 to
85℃
Glass Fiber Corning, YOFC Operating Temperature -10 to +70°C

Applications
HPC(High-Performance Computing)
Datacom
DC(Data Center)& Hyperscale DC
LAN and SAN Backbone Network
MTP/MPO-8F/LCis optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD
DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics
connection and high-density data center applications.
