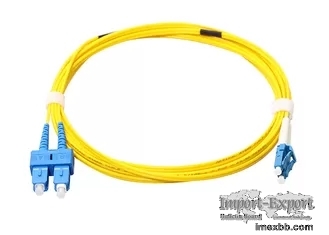

LC Sc 3.0mm Duplex Fiber Cable Sm Simplex 9/125 Fiber Optic Patch Cord

LC Sc 3.0mm Duplex Fiber Cable Sm Simplex 9/125 Fiber Optic Patch Cord





The fiber optic patchcord is a length of fiber optic cable terminated at
both ends with connectors that allow it to be rapidly and conveniently
connected to telecommunication equipment. Whether they are called a patch
cord, patch cable or fiber optic jumper.



Description:
Connector:SC,FC,ST,LC,MU,M , TRJ,E2000, etc
Polishing type:PC,UPC,APC
Fiber Type:Singlemode(G652D,G657A),Multimode(OM1,OM2,OM3 , ,OM4)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distributio , n, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Optical Specifications:

Parameter Singlemode Patchcord Multimode Patchcord
Polishing Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB
<=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles


LC Sc 3.0mm Duplex Fiber Cable Sm Simplex 9/125 Fiber Optic Patch Cord 0

LC Sc 3.0mm Duplex Fiber Cable Sm Simplex 9/125 Fiber Optic Patch Cord 1
LC Sc 3.0mm Duplex Fiber Cable Sm Simplex 9/125 Fiber Optic Patch Cord
Enlarge Click to Enlarge
